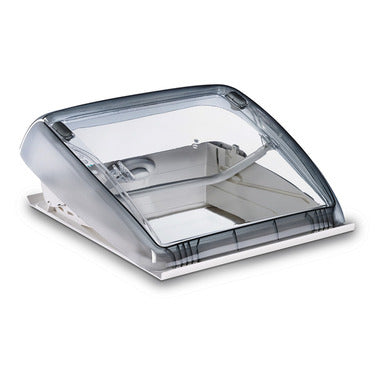

Dometic Mini Heki Style 400x400MM

With forced venting
Aerodynamic shape
Hood gray tinted

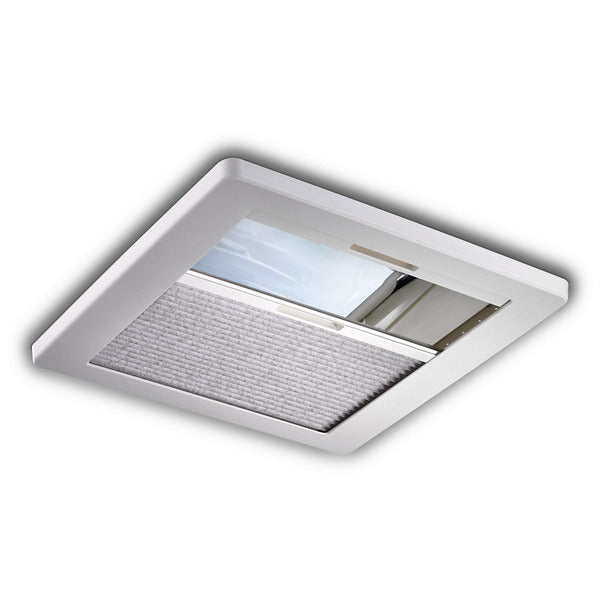

With combi blind
Living pleated blind
Top side aluminum coated
Tight fly screen
Large glass overhang
Bad weather position

Small roof hatch with large light output. Cutout size: 40 x 40 cm brings a light incidence of 37 x 38 cm. Dome tinted gray, extremely break-resistant polycarbonate. Double glazed, aerodynamic shape. Large glass dome for bad weather position - large glass overhang. Convenient setting up of the dome by means of an operating handle, which is positively guided in guideways. 3 different positions: fully open, middle position and bad weather position. Closed position is automatically positively locked. Mounting: clamping principle, outer frame is put on and sealed. The inner frame is simply clipped in place. Inner frame with black pleated flyscreen and pleated blackout roller. Reflection of the sun's rays on the aluminum-coated surface of the blackout roller blind. Height above roof 105 mm. Max. Opening angle 50°.
Scope of delivery:
1 outer frame with glass dome
1 mounting frame
1 inner frame
12 long mounting screw
12 short mounting screw
12 mounting clamp
1 instruction
Fan:    No
forced ventilation:    With
lighting:    No
Cut-out dimension width:    400 mm
Cut-out height:    400 mm
External width :    52 cm
External length :    53.5 cm
External height :    10.5 cm
Roof thickness:    43-60-60 mm
Color of inner frame:    White
Weight:    3.3 kg
color disc:    Tinted
